Deploying Applications in Azure Cloud Service

Figure 01

What is a resource group?

Azure resource manager is the deployment and management service for azure. We can group related resources together and it enables you to create, Update and delete resources in azure account.

Figure 02
Figure 03
Figure 04
Figure 05

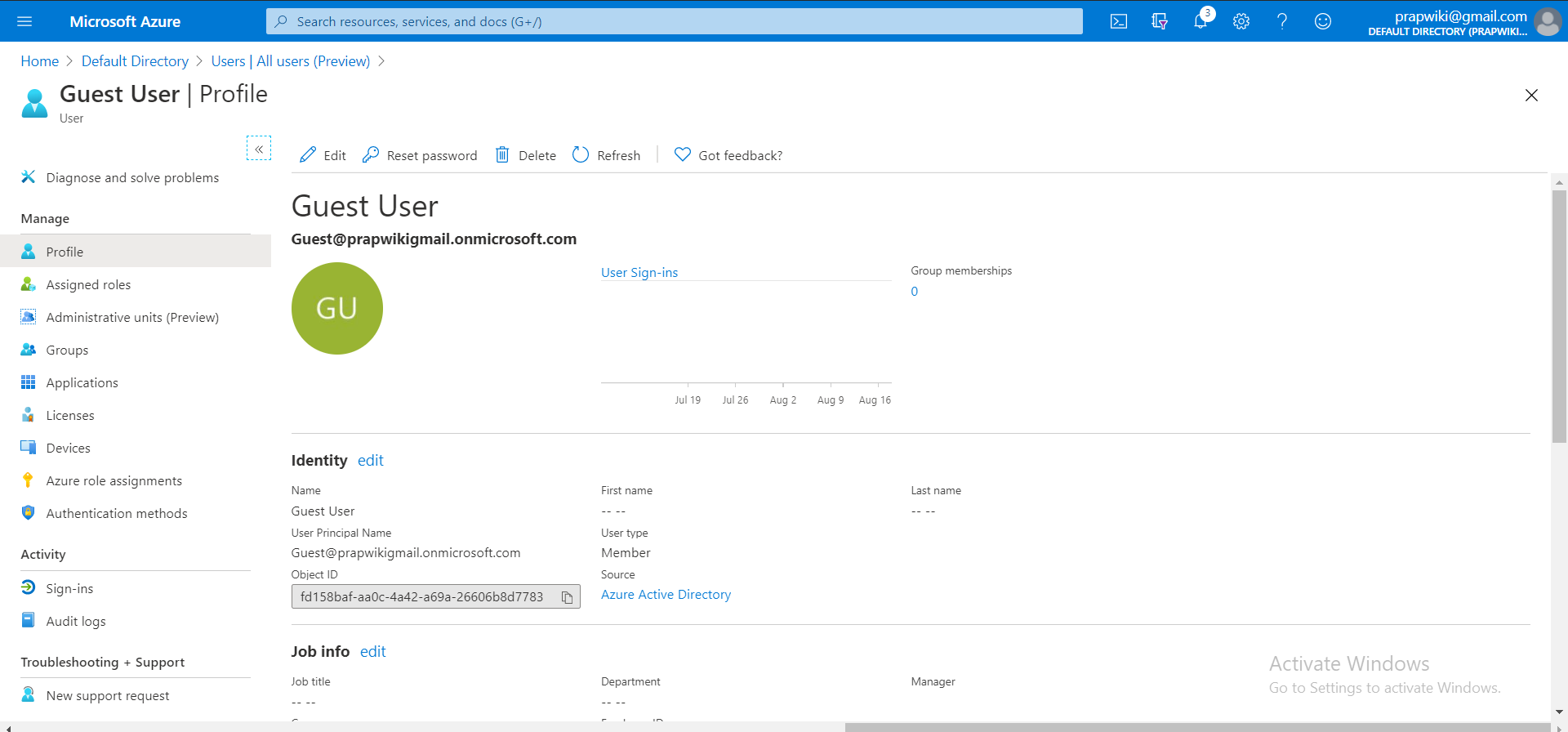

What is active directory?

Azure active Directory (Azure AD) is Microsoft’s cloud-based identity and access management service. Active directory helps you organize your company’s users, computer and more. Active directory can organize hierarchies from which computers belong on which network.

Figure 06
Figure 07
Figure 08
Figure 09
Figure 10

What is an App Service?

Azure application services are a pool of services such as load balancing,application perform monitoring, application acceleration, auto scaling etc.

Figure 11
Figure 12

What is Azure database?

Microsoft azure SQL database is managed cloud database provided as part of Microsoft Azure. The cloud database is a database that runs on a cloud computing platform.

Figure 13
Figure 14
Figure 15
Figure 16

Creating Azure cache for Redis..

The Azure Redis Cache is a high-performance caching service that provides in-memory data store for faster retrieval of data. It is based on the open-source implementation Redis cache. This ensures low latency and high throughput by reducing the need to perform slow I/O operations.

Figure 17
Figure 18

How to create a Azure function…

Azure Functions is an event driven, compute-on-demand experience that extends the existing Azure application platform with capabilities to implement code triggered by events occurring in Azure or third party service as well as on-premises systems. It is a server less compute service that let you run event-triggered code without having to explicitly provision or manage infrastructure.

Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24

How to create a Front Door…

Azure Front Door enables you to define, manage, and monitor the global routing for your web traffic by optimizing for best performance and quick global failover for high availability. With Front Door, you can transform your global (multi-region) consumer and enterprise applications into robust, high-performance personalized modern applications, APIs, and content that reaches a global audience with Azure.

Figure 25
Figure 26
Figure 27
